Hexagon bolt DIN933/GB5783 DIN931/GB5782

Home / Products / Hexagon Bolt Nut Washer / Hexagon bolt DIN933/GB5783 DIN931/GB5782
Hexagon bolt DIN933/GB5783  DIN931/GB5782

Hexagon bolt DIN933/GB5783 DIN931/GB5782

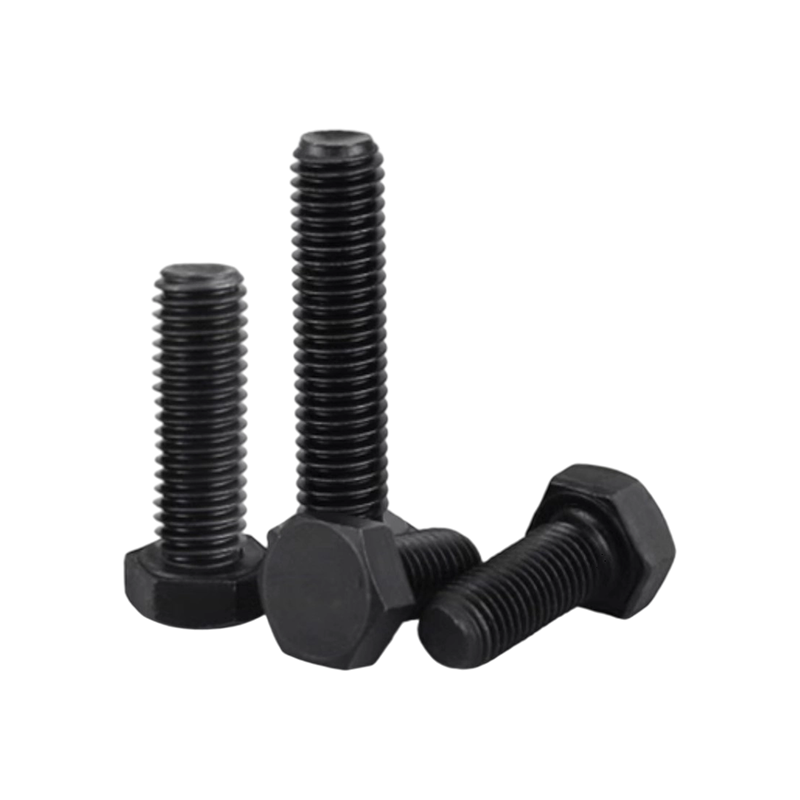

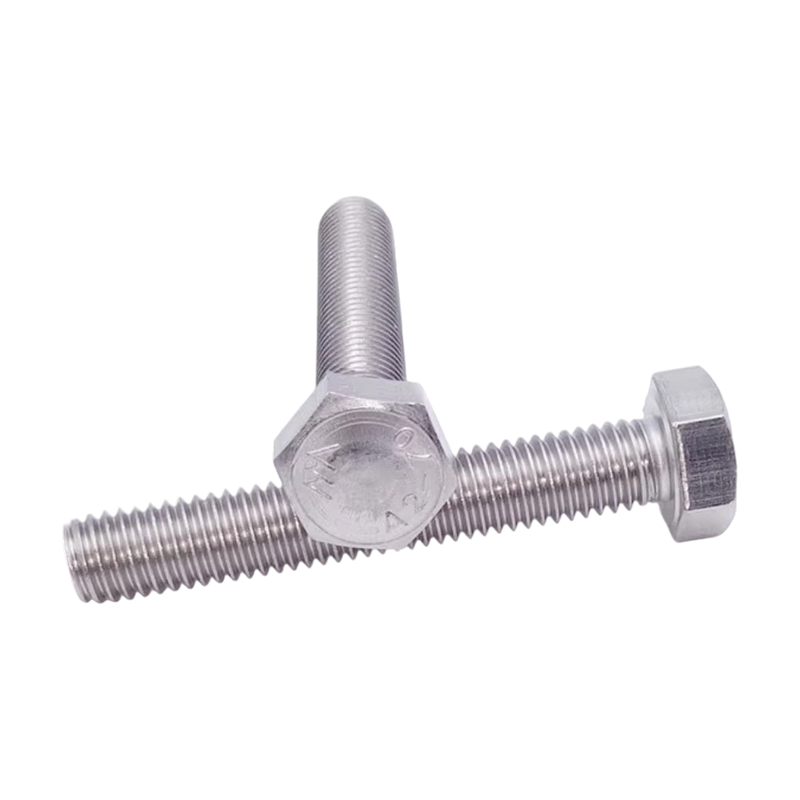

DIN 933 (Hexagonal Full Thread Bolt)
Definition: DIN 933 is a hexagonal head full thread bolt, also called a full thread hexagon bolt. It has threads from the head to the bolt tail and can be fastened to the connected parts by a nut.

Application: This bolt is suitable for applications requiring full thread, often used to connect longer components, suitable for withstanding greater torque and load.

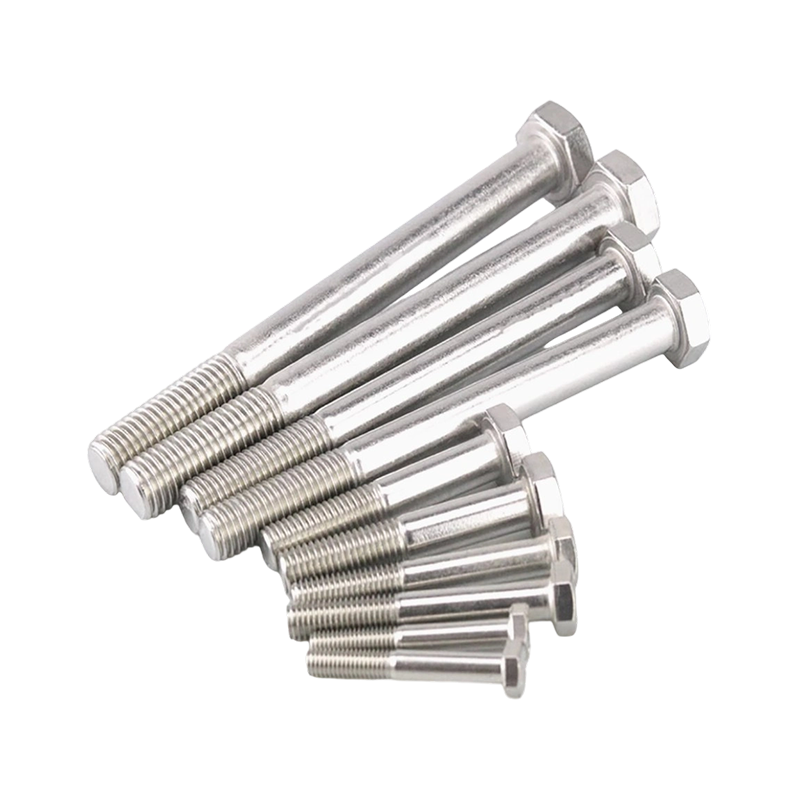

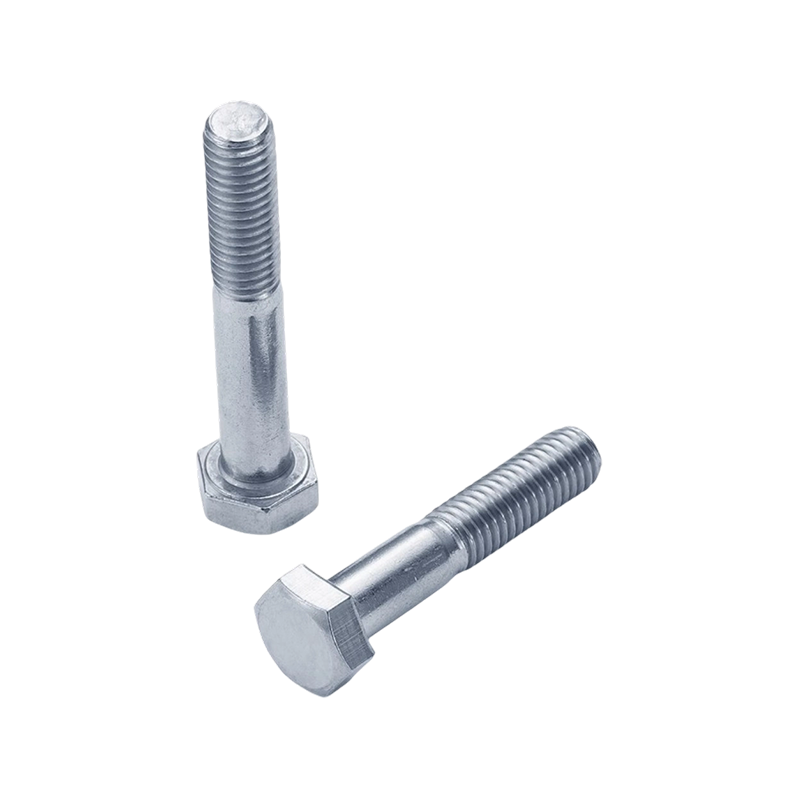

DIN 931 (Hexagon Half-Thread Bolt)
Definition: DIN 931 is a hexagon head half-thread bolt, where the threaded portion of the bolt only covers a portion of the length. Usually only the bottom of the bolt is threaded, and the upper part of the bolt is usually smooth.

Use: This bolt is used in some applications that require a threaded and smooth section. It provides better tensile resistance under higher loads, but is not suitable for applications that require a full thread.

Application scenarios: DIN 933 is suitable for longer connections and larger loads, DIN 931 is used in applications where a smooth section of rod is required.

Material: Carbon steel Stainless steel 304 316
Head shape: Hexagonal head
Grade: 4.8, 5.8, 8.8, 10.9, 12.9

Thread size  Length
M3 6-40mm
M4 6-60mm
M5 8-100mm
M6 8-200mm
M8 12-200mm
M10 16-200mm
M12 20-200mm
M14 30-200mm
M16 30-200mm
M18 30-200mm
M20 30-200mm
